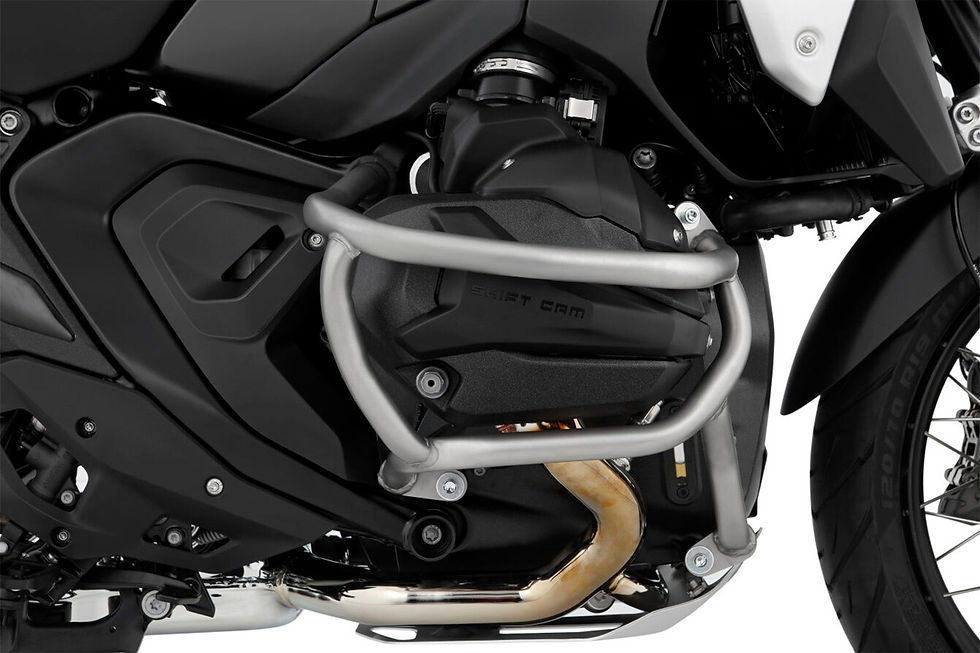

Function and product features of the Wunderlich engine protection bar Ultimate
Wunderlich ULTIMATE engine protection bars are designed without compromise for their protective effect for adventure riding
Maximum protection through additional structural bracing, which significantly increases the rigidity of the guard bar
The perfect protection of cylinders, valve covers and both lambda sensors reduces the risk of expensive damage to the motorcycle itself
Even distribution of forces across four support points per vehicle side
The shape of the temples is precisely tailored to the contours of the boxer
No impairment of ground clearance
Easy to maintain: Oil change with oil filter cartridge is possible without dismantling the engine guard
Plug & Play fit: uncomplicated installation including detailed installation instructions
also fits with original BMW cylinder head cover protection
Note and our recommendation
Bikes are often designed so that – if an engine guard is present – the footrest and guard touch down almost simultaneously at a lean angle that is not critical in terms of tire grip. It's important to be aware that various factors, such as the bike's load or riding over a dip or pothole, can limit the lean angle.
For riders who want more reserves when approaching the asphalt, we have developed our lean angle indicators (#13515-200) , which can be easily screwed onto the outside of the original enduro footrests .
Technical data
material
 High-quality stainless steel with high tensile strength and elongation, carefully crafted, precisely shaped radii and clean weld seams, precise connections
Dimensions
Pipe diameter 25 millimeters
Weight 4.6 kg
Color
stainless steel colors
Your Wunderlich advantages
Wunderlich premium product. Small series. Handmade.
Wunderlich design. Integrated and functional.
Made in Germany
Wonderful 60/5
60-day return policy - try it risk-free!
Plus 5 year warranty.
World-traveling adventure riders know this: There are those days when the motorcycle falls to the side more than once because of conditions unimaginable in sophisticated and civilized Europe with its well-developed road network. Or because the physical exertion, heat, or cold simply leaves you with no strength or stamina to hold the bike. Beyond civilization, it's all the more important to travel with reliable equipment that can handle the associated material stress and simply endure without failing. It can be vital to remain mobile, constantly on the move, and independent in order to minimize the potential for personal danger.
This Wunderlich ULTIMATE engine guard is specially designed for adventure riding.
It not only reliably protects the cylinders and valve covers, but also the two lambda sensors. This all-round protection concept increases passive safety and thus driving pleasure. In the event of a fall or a tip-over, the forces acting on the motorcycle are optimally distributed across the protective bar structure to the resilient mounting points, thus avoiding force and torque peaks and effectively reducing material stress.
The engine guard structure is made of 25-millimeter precision stainless steel tubing. The tubing segments are formed on CNC tube bending machines and then neatly welded. Visually, the guard integrates seamlessly with the motorcycle's design, blending in with its striking appearance. Our ULTIMATE engine guard is designed for easy maintenance: The oil drain plug and oil filter cartridge are fully accessible for oil changes without having to disassemble the engine guard.
Our engine guards focus on both protective function and product design. This stainless steel engine guard adds a high-quality finishing touch to your BMW. The stainless steel surface is glass bead blasted and electropolished.

Fits Models:
R 1300 GS not compatible with 35833-002
R 1300 GS Adventure not compatible with 35833-002
R 1300 R not suitable with 35833-002 / not with original engine spoiler and cylinder guard
